Application Introduction:
LED solar street lights are a great way to provide lighting to a street, roadway or highway without trenching in traditonal grid power. As a result, solar LED street lights can lower installation costs, reduce the need for tons of wiring, and reduce the maintenance and project costs over the system's life. And since they are independent of the grid, you don't have to worry about problems down the line affecting every light, such as blackouts or breaks in the underground lines.
3030 SMD efficiency option 3V 300MA 170-180lm white color PPT SMD LED CHIP for street light
Quick details:
| Input Voltage(V): | 3V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 3030 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 170-180LM |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | Warm White/Natural White/COOL WHITE |
| Power: | 1W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2700-6500K |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | street light |
| Package Type: | Suface Mount Package |
| Forward Current: | 300MA |
| Size: | 3.0*3.0*0.6mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure:
Product Specification:
| Item | Specification | Material | Quantity |
| Chip | InGaN | InGaN | 2 in 1 |
| Reflector | White | PCT | |
| Frame | C194 | Silver-Plated Copper | |
| Gold wire | 0.9mil | Alloy | |
| Phosphor | white | white | |
| Encapsulant | MilkyWhite | Resin | |
| Carrier tape | According to EIA 481-1A specs | Conductive black tape | 4000pcs per reel |
| Reel | According to EIA 481-1A specs | Conductive black | 4000pcs per reel |
| Label | Repsn standard | Paper | |
| Packing bag | 220x240mm | Aluminum laminated bag/ no-zipper | One reel one bag |
| Carton | Repsn standard | Paper | Non-specified |
Typical Electro-Optical characteristics curves:
LED Reliability Test List:
| Test Item | Test Conditions | Standard | Qty(Pcs) | Ac/Re |
| Life Test | 25℃,1000Hrs@300mA | / | 20 | 0/1 |
| High Temperature | 85℃,1000Hrs@300mA | / | 20 | 0/1 |
| Low Temperature | -40℃,1000Hrs@300mA | / | 20 | 0/1 |
| High Humidity Heat | 85℃,85%RH, 1000Hrs@300mA | / | 20 | 0/1 |
| Low Temperature Storage | -40℃,1000Hrs | JEITA ED-4701 200 202 | 20 | 0/1 |
| High Temperature Storage | 100℃,1000Hrs | JEITA ED-4701 200 201 | 20 | 0/1 |
| Temperature Cycle | (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) | JEITA ED-4701 100 105 | 20 | 0/1 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,100C | MIL-STD-202G | 20 | 0/1 |
Pulse Life Test | Tp=1ms,DC=0.1,D=Tp/T @ 3×300mA | / | 20 | 0/1 |
| ESD Test(HBM) | 2000V,200V/Step, Forward & Reverse Test both 3times | AEC (Q101-001) | 20 | 0/1 |
| Soldering Resistance | 260±5℃,10S,3times Pre-treatment 30℃,70%RH | JEITA ED-4701 300 302 | 20 | 0/1 |
| Reflow IV Decay | 260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs | / | 20 | 0/1 |
| Judgment Criteria | ||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||
| Reverse Current IR | IR Max-Increase < IRmax | |||
| Luminous Intensity IV | IV Decay < 40% | |||
※Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) | ||||

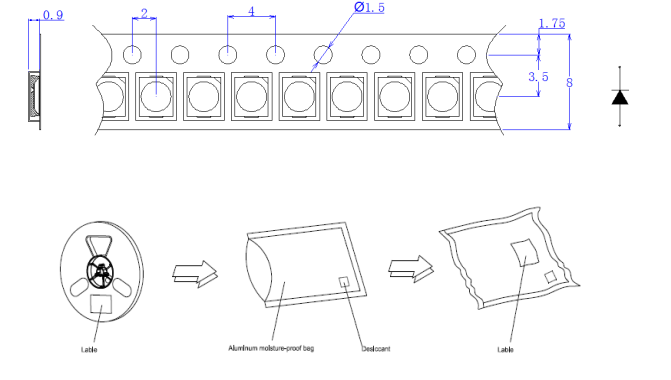

Packaging:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the
LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence
to the reliability of the LEDs. Precautions Should be taken to
avoid the strong pressure on the encapsulated part. So when use the
picking up nozzle,The pressure on the silicone resin should be
proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than
300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
|
|
