Application Introduction:
Wall painting beautification works of hotels, hotels, restaurants, villas, teahouses, Western restaurants, cafes, cake houses, bars, karaoke halls, dance halls, saunas, beauty salons, fitness rooms, health centers, etc
Making full use of the backlight transmission characteristics of the material, the light release rate is high, and the light propagation is more uniform and natural
2835 18V rgb smd led chip for department stores, chain supermarkets, shopping malls
Quick details:
| Input Voltage(V): | 17.5-18.5V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 150-160LM |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | RED/GREEN /BLUE |
| Power: | 1w |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | Wedding studio, home decoration |
| Package Type: | Suface Mount Package |
| Forward Current: | 60MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Outline Dimension:
Absolute Maximum Ratings:
| Item | Symbol | Maximum | Unit |
| Power dissipation | PD | 1 | W |
| Continuous forward current | IFmax | 60 | mA |
| Peak forward current (1/10 duty cycle 10ms pulse width) | IFP | 80 | mA |
| Reverse voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 2000 | V |
| Operating temperature range | Topr | -40 to +85 | ℃ |
| Storage temperature range | Tstg | -40 to +85 | ℃ |
| Led yunction temperature | Tj | 125 | ℃ |
Electrical/Optical Characteristics:
| Item | Symbol | Condition | Color | Min | Typ | Max | Unit |
Forward voltage | VF | IF=60mA | R | 17.5 | 18.5 | 19 | V |
| G | 17.5 | 18.5 | 19 | V | |||
| B | 17.5 | 18.5 | 19 | V | |||
| Viewing Angle | 2θ1/2 | IF=60mA | R/G/B | - | 120 | - | Deg |
Luminous Intensity | IV | I IF=60mA | R | - | LM | ||
| G | - | LM | |||||
| B | - | LM | |||||
Wavelength | WLD | IF=60mA | R | 615 | - | 620 | nm |
| G | 515 | - | 520 | nm | |||
| B | 452 | - | 457.5 | nm | |||
| Reverse Current | Ir | Vr=7V | R/G/B | 0 | 1 | uA | |
| Thermal resistance | Rth(j-s) | IF=60mA | R/G/B | 28 | ℃/W |
Typical Electro-Optical Characteristic Curves:
Packing and Shipping Instruction:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the
LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence
to the reliability of the LEDs. Precautions Should be taken to
avoid the strong pressure on the encapsulated part. So when use the
picking up nozzle,The pressure on the silicone resin should be
proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than
300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating

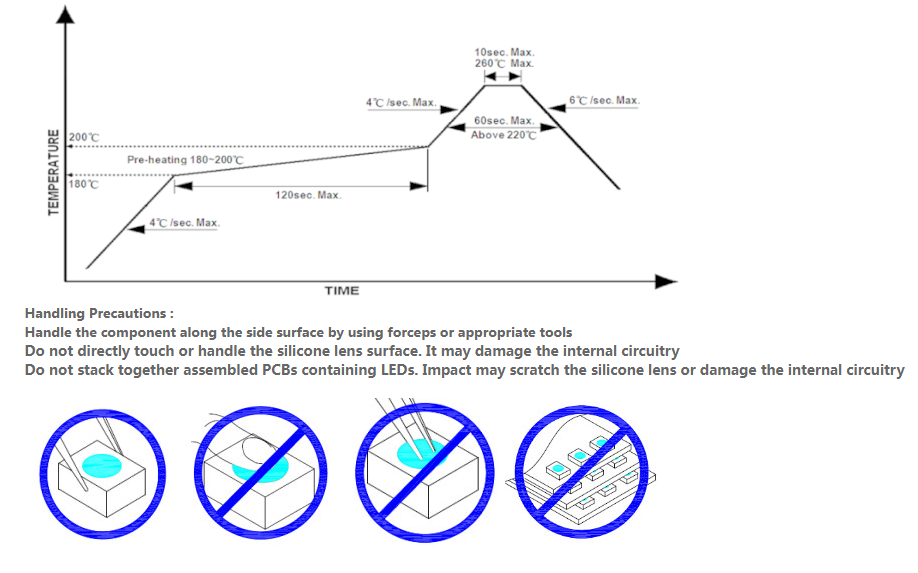

The recommended reflow soldering profile as following
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
|
|
