| Brand Name : | PHOENIX |
| Model Number : | 2835 |
| Certification : | LM80 CE ROHS |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T |
| Supply Ability : | 800KK PER MONTH |
| Delivery Time : | 7-10 DAYS |
Application Introduction:
3V 2835 Red Chip bright Led Package for led strip
Quick details:
| Input Voltage(V): | 3V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 60-65lm |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | Red |
| Power: | 0.5W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 620-625NM |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | Household appliances and traffic lights |
| Package Type: | Suface Mount Package |
| Forward Current: | 150MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure:
Absolute Maximum Ratings:
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 150 | mA |
| Reverse Voltage | Vr | 5 | V |
| Pulsed Forward Current | IFP* | 180 | mA |
| Power dissipation | PD | 0.5 | W |
| Operating Temperature | TOP | -40~85 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 120 | ℃ |
| LED Thermal resistance | Rth s-j | 33 | ℃/W |

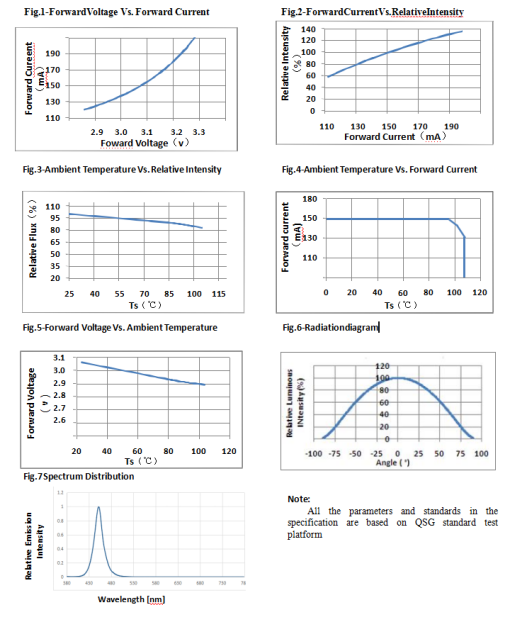

Typical Electro-Optical characteristics curves:
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
|
|
